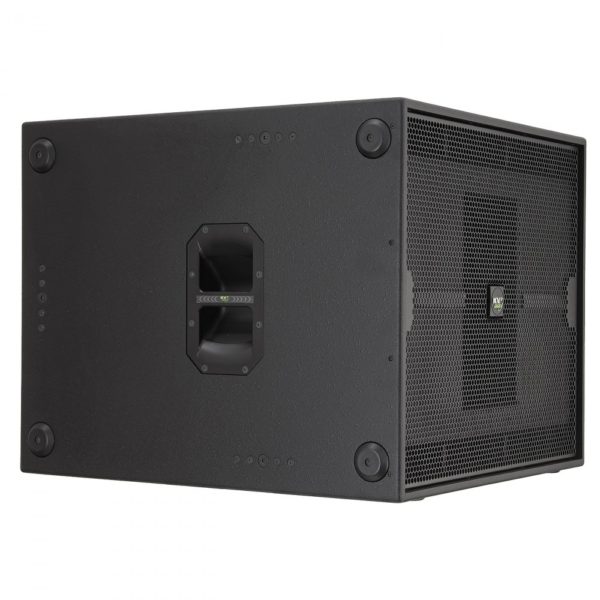

Product Description
Features
- Professional, Baltic birch construction with highly resistant polymer coating
- 134dB sustained output (per ES2.5 unit) 137dB peak
- High acoustic loading via twin asymmetrical chambers
- Two 15″ low frequency drivers with 4″ (100 mm) inside/outside, epoxy baked, high temperature voice coil assembly
- Four proprietary side handles for simlified handling and carrying
- Heavy duty front grille to work with the innovative ES series magnetic carts
- High-impact, low friction feet are asymmetrically located on two sides allowing vertical or horizontal system set up, lock-in and easy cabinet movement
- Six industrial grade internal corner braces with twelve M10 suspension points
- M20 top hat for pole mounting applications
- Weather proofing option and special paint finishes available on request
Applications
Specifically designed to accompany the ES1.0 as a true full range high output system for live performance and music
- Theatres
- Houses of worship
- Portable PA
- Scalable into larger systems
- Can be integrated with other ES subwoofers
Product code
- KVV 987 005 – ES2.5
Additional Information
Max SPL Long-term | 134dB |
---|---|
Max SPL Peak | 137dB |
-3dB Response | 38Hz to 130Hz |
-10dB Response | 34Hz to 130Hz |
Impedance | 4Ω |
Crossover Point | 130Hz |
Acoustic Design | Twin Asymmetrical loading |
Low Frequenzy Amplifier Requirement | 1600W / ES 2.5 from EPAK 2500/R |
Number of Drivers | 2 |
Woofer Size / Voice Coil Diameter / Design | 15" / 4" Inside Outside |
Diaphragm Material | Epoxy Reinforced Cellulose |
Magnet Type | Ferrite |
Speaker Input | AP4 |
Speaker Output | AP4 |
Cabinet Material | Baltic birch |
Handles | 4 |
Pole Mount | M20 |
Color | "Orange peeled" Matt Black or any RAL |
Height | 600 mm (23.62") |
Width | 700 mm (27.55") |
Depth | 750 mm (29.52") |
Weight | 69 kg (151.8lbs) |
