Product Description

Features

  • Professional, Baltic birch construction with wear resistant polymer coating
  • 124dB sustained output, 127dB peak with very high dynamic range and low noise floor
  • 370W of total power with complete on-board speaker management system
  • 350W high efficiency, current enhancing, switching low frequency amplifier
  • Very high quality 20W, low IM distortion, Class AB, high frequency amplifier with transformer balanced output
  • Compact low profile cabinet design allows for use as a front fill or in under balcony applications with high pass filter to adjust equalization and phase response
  • Wide dispersion 100° H x 100° V horn
  • New patent pending 1.75″ (44 mm) Nitride Titanium diaphragm compression driver with complex geometry phase plug for higher output, exceptionally low distortion, extended frequency response and neodymium magnet structure
  • Two 6″ woofers feature neodymium magnetic motor structures that dramatically increase force, lower distortion and provide increased frequency response linearity

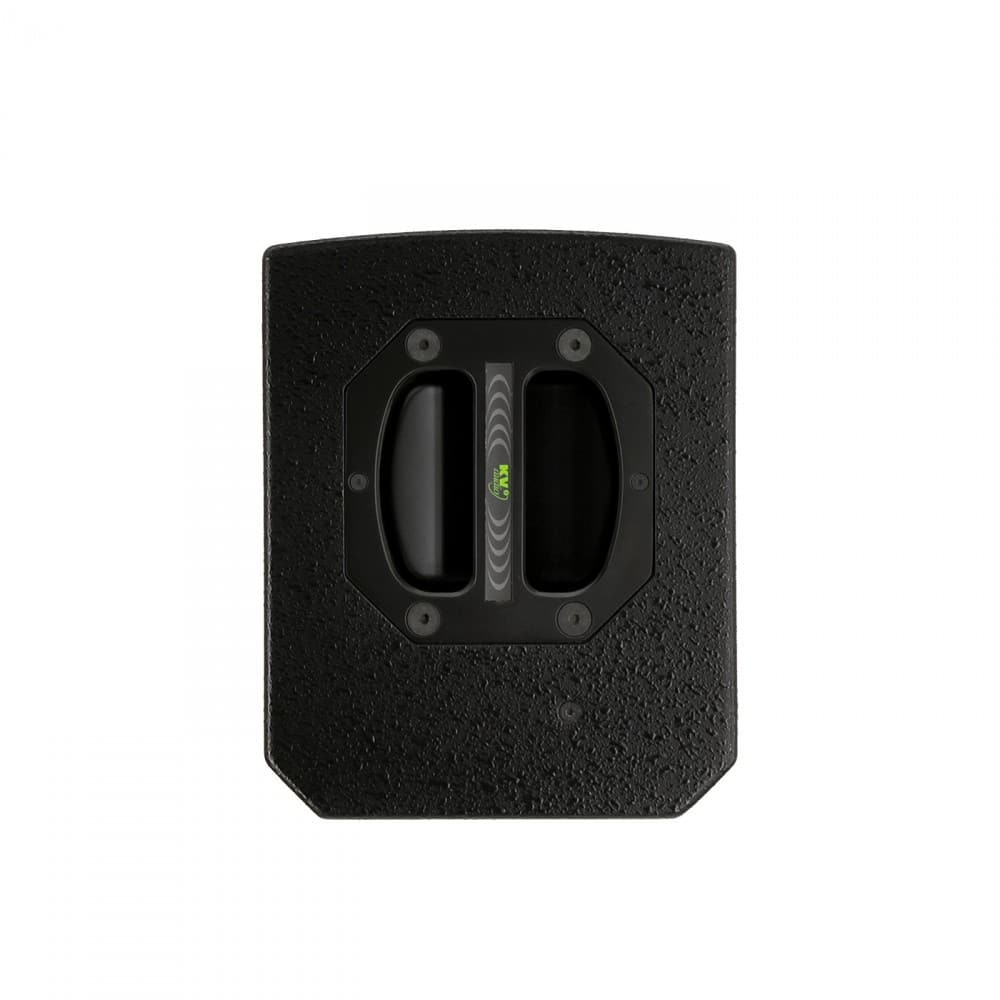

  • Proprietary top handle design for simplified handling and carrying, integrates one M10 suspension point, OmnimountTM bracket point and four M6 points
  • Additional side and bottom M10 points for flexible bracket, rigging and installation options
  • “Top-hat” pole mount fitted at the base of the cabinet
  • LED indicators for signal present and Power ON status

Applications

Purposely designed as a stand-alone unit for extremely high quality vocal reproduction and output

  • Church and houses of worship
  • Conference and presentations
  • Front of stage and balcony infill
  • Full range portable PA when used with subwoofers for larger Multi-Media applications and small live music applications

Product code

  • KVV 987 164 – EX26 230V
  • KVV 987 165 – EX26 115V
Please follow and like us:
More Info

Additional Information

Max SPL Long-term

124dB

Max SPL Peak

127dB

-3dB Response

80Hz to 20kHz

-10dB Response

65Hz to 28kHz

Crossover Point

2.5kHz

High Horn Coverage Horizontal / Vertical

100° x 100°

Throat Exit Diameter / Diaphragm Size

1" / 1.75"

Acoustic Design

Front Loaded, Bass Reflex

Woofer Size / Voice Coil Diameter / Design

6" / 1.75"

Magnet Type

Neodymium

Diaphragm Material

Epoxy Reinforced Cellulose

Type

High efficiency, Current-enhancing switch mode

Rated Continuous Power

350W

Distortion

<0.05%

Operating Bandwidth

68Hz to 2.5kHz

Input Sensitivity

1V RMS

Input Impedance

20 kΩ

Power Connector

Neutrik PowerCon®

Operating Voltage Range

100 to 120V @ 60Hz, 230 to 250V @ 50Hz

Recommended Amperage

3.15A 115V, 1.6A 230V

Cabinet Material

Baltic birch

Handles

1

Pole Mount

35 mm

Color

"Orange peeled" Matt Black or any RAL

Height

570 mm (22.44")

Width

220 mm (8.66")

Depth

274 mm (10.78")

Weight

16 kg (35.2lbs)
