M930 (M940,M950)

Return to Previous Page
Description

Product Description

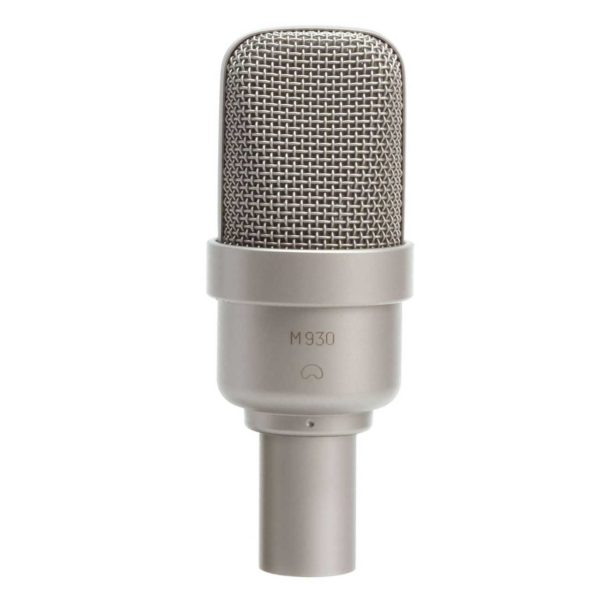

The M930 is a fixed-cardioid, large-diaphragm condenser mic that is known for its small size, low noise, and great sound.

The capsule developed for the M930 is a large-diaphragm design that is used in numerous mics, such as the UM930, UM930 Twin, M940 and M950. The capsule is shockmounted within the headbasket, reducing sensitivity to structure-born noise. This capsule design, known as the “M930” capsule, uses a Mylar diaphragm (not PVC) and is not an M7 capsule, despite early reviews that claimed so.

The transformerless output circuit provides a high level of sensitivity (21 mV/Pa) and very low noise (7 dB-A).

See also the M940 and M950, which are super-cardioid and wide-cardioid versions (respectively) of the M930.

More Info

Additional Information

Pickup Patterns

Cardioid (21 mV/Pa; 40 – 18,000 Hz)

Capsule Dimensions

Diaphragm diameter: 28mm
Capsule diameter: 32mm

Impedance

100 Ohms

SPL/Noise

Max SPL: 142 dB
Self-noise: 7.0 dB(A)

Weight

210g

Length

118mm

Max Diameter

45mm

Interface(s)

3-pin XLR male (1)

Power Specifications

Requires phantom power
Phantom voltage: 48v
