Product Description

The RB-SP1 digital splitter & combiner is used to interface various double sampling pieces of equipment. Some older equipment uses 2 AES/EBU connectors for double sampling with each connector carrying an audio signal at a normal frame rate, whilst other equipment has a single connector using twice the frame rate.

The RB-SP1 can interface between them, either combining the signals from 2 XLR’s into 1, or splitting the signal from 1 XLR into 2.

The RB-SP1 can also be used for interfacing stereo and mono signals to digital mixing desks by splitting the left and right signals of a stereo XLR to two separate XLR’s, and vice versa by combining them.

Additionally, a sample rate converter on the second digital input can be used to convert the sample rate of the secondary input to that of the primary input. The RB-SP1 can handle sample rates up to 96kHz and sample sizes of 16, 20 and 24 bit.

There are two types of operation : Split 96, and Stereo/Mono. These each have three different switch modes : Split, Bypass and Combine. (Download the product handbook for further information on what this product can do).

Both inputs and outputs can be selected as either AES/EBU or S/PDIF with the resultant digital level following the switch selection.

Please follow and like us:
More Info

Additional Information

Input Impedance:

110Ω ±20% balanced (AES/EBU)

Signal Level:

3V/10V peak to peak min/max (AES/EBU)
0.5V ±20% peak to peak (S/PDIF)

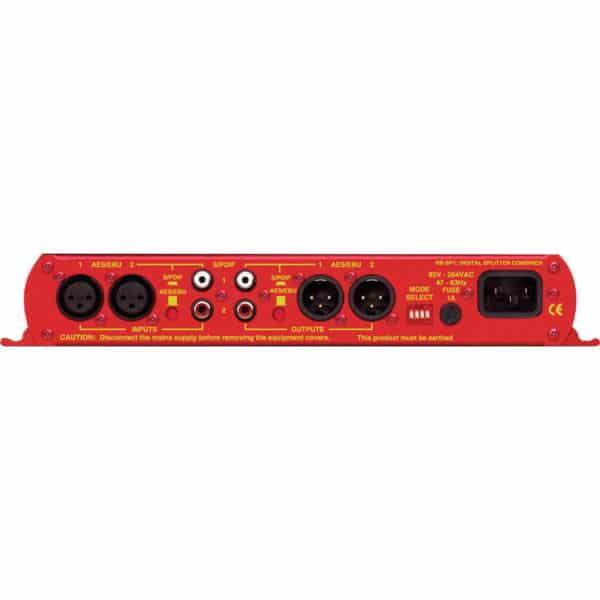

Audio Inputs:

2 x AES/EBU XLR 3 pin female (balanced)
2 x S/PDIF RCA phono female (unbalanced) (Input button selects between AES/EBU and S/PDIF)

Audio Outputs:

2 x AES/EBU XLR 3 pin male (balanced)
2 x S/PDIF RCA phono female (unbalanced), (Output button selects between AES/EBU and S/PDIF)


48cm (W) x 10.8cm (D) x 4.2cm (H) (1U)


Nett: 1.6kg Gross: 2.2kg
