Product Description

Features

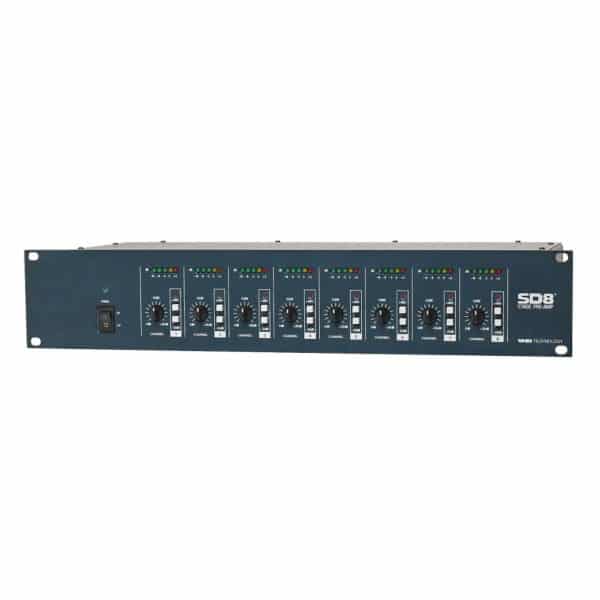

  • 2U 19″ rack eight channel stage preamp with line drivers
  • Eight individual microphone or line inputs with gain controls and pads
  • Phantom power available on each channel
  • Sixteen individual 50 ohm outputs (two per input)

Applications

Specifically designed as part of the VHD system as a multi-channel stage preamplifier Line driver to maintain signal integrity between the stage Microphone instrument inputs and mixer over long distances

  • Live music and performance
  • Fixed installations
  • Can be used with any Audio system for improved results

Product code

  • KVV 987 093 – Stage preamp 230V
  • KVV 987 094 – Stage preamp 115V
Please follow and like us:
More Info

Additional Information

-1dB Response

6Hz to 500kHz

Dynamic Range

>120dB

Total Harmonic Distortion

<0.0005%

Max. Output Voltage

14V / 7V (50Ω) RMS

Max. Output Current

450mA

Input Channels

8x

Input Impedance

20kΩ

Mic input

0 to +30dB Gain, pad -20dB

Signal Output Channels

8×2

Output Impedance

50Ω

Indicators

Signal bar, Phantom

Power Connector

IEC 320

Operating Voltage

115V / 230V

Operating Voltage Range

100 to 120V @ 60Hz, 230 to 250V @ 50Hz

Height

89.0 mm (3.0")

Width

482.6 mm (19.0")

Depth

203 mm (7.9")

Weight

5.5 kg (12.1lbs)
