Product Description
Features

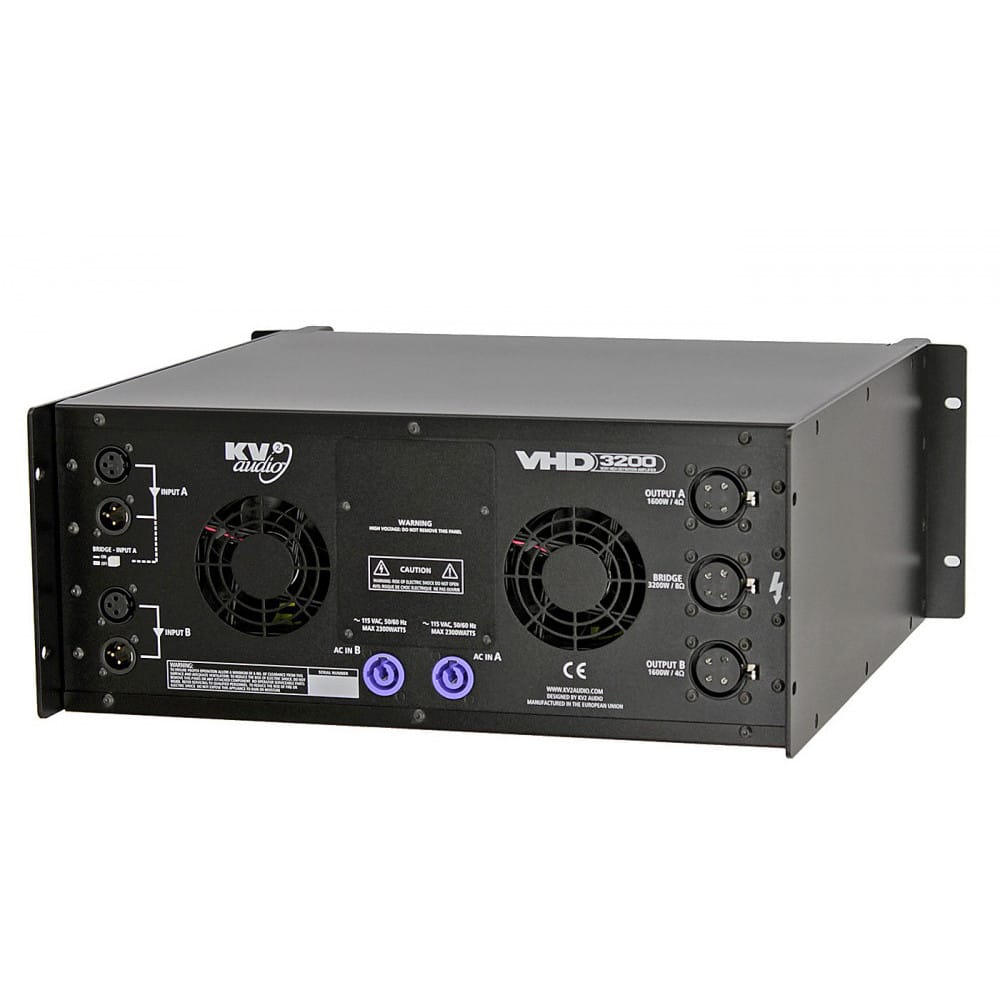

- Two channel 3200W, Control and Amplification System for use specifically with VHD series subwoofers
- Bridge mode facility
- Two individual 1600W, high efficiency, current enhancing switching amplifiers with separate Input and output
- Two individual transformers and power supply circuits for increased reliability and improved power delivery
- On board amplifier overdrive protection
- AC soft start circuitry with two individual ON/OFF AC breaker switches providing thorough power protection
- Comprehensive front-to-back cooling system features chassis sealed pcb’s for improved reliability
Applications
Specifically designed to drive all VHD, ES, SL subwoofer elements as part of the VHD
and ES systems in a full rack mount module
- Portable PA
- Fixed installations
Product code
- KVV 987 176 – VHD3200 250V
- KVV 987 083 – VHD3200 230V
- KVV 987 084 – VHD3200 115V
Please follow and like us:
Additional Information
| Number of Channels | 2 |
|---|---|
| Out. Power 4Ω - 1 channel / 2 channels loaded | 1600W / 1600W (RMS) |
| Out. Power 8Ω - bridged | 3200W (RMS) |
| Type | High efficiency, Low frequency, Current-enhancing switch mode |
| Distortion | <0.05% |
| Operating Bandwidth | 20Hz to 100Hz |
| Input Sensitivity | 1.0V RMS |
| Input Impedance | 20kΩ (balanced) |
| Signal Output | Main Through OUT |
| Speaker Output | 2x AP4 (1x AP4 bridge) |
| System setup | Limiter / Short protection |
| Power Connector | 2x Neutrik PowerCon® |
| Operating Voltage | 115V / 230V / 250V |
| Operating Voltage Range | 100 to 120V@60Hz, 205 to 240V@50Hz, 225 to 260V@50Hz |
| Recommended Amperage | 2 x 20A 115V, 2 x 10A 230V, 2 x 10A 250V |
| Soft Start | YES |
| Protection | Thermal breaker |
| Cooling | 2x temperature controlled fans |
| Height | 177.4 mm (7.0") |
| Width | 481.4 mm (18.9") |
| Depth | 455.3 mm (17.9") |
| Weight | 35 kg (88lbs) |
