Product Description
Features

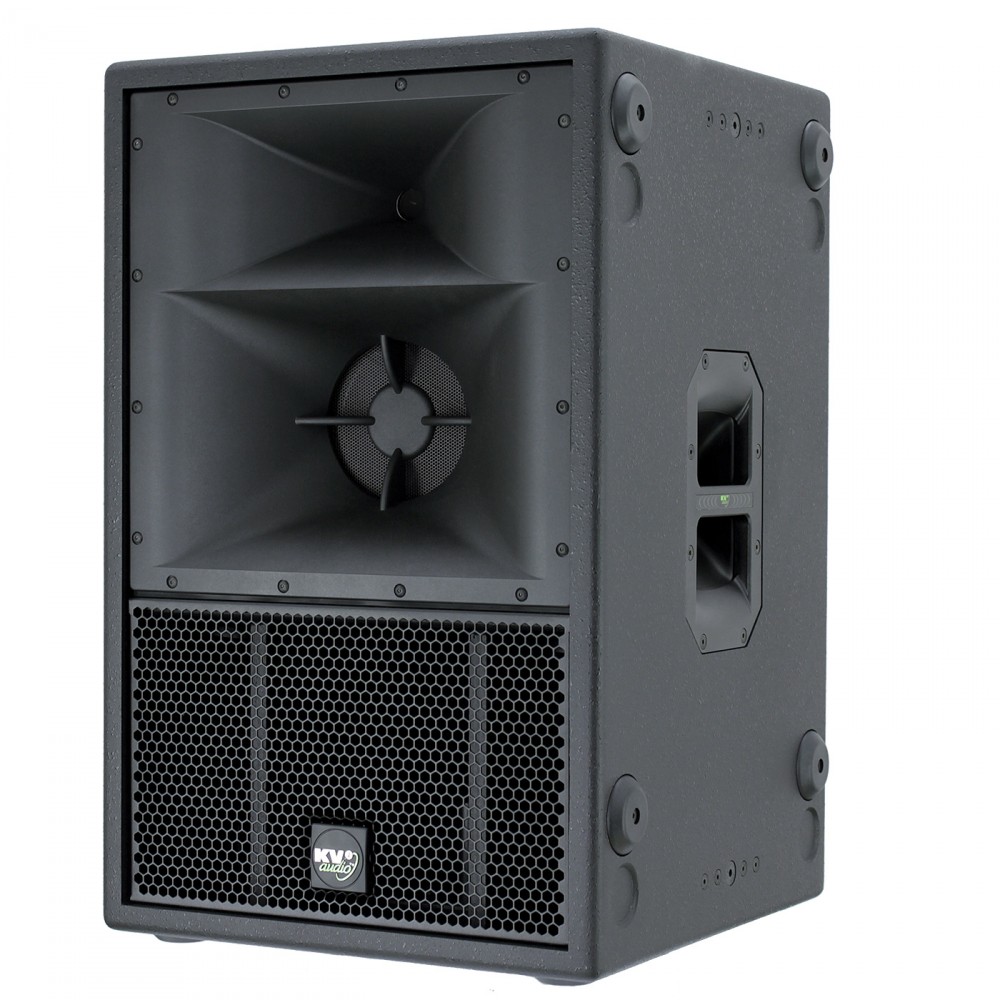

- Professional Baltic birch construction with wear resistant polymer coating
- 131dB sustained output, 134dB peak
- Controlled wide dispersion 90° x 40°, rotatable mid-high horn for mounting in vertical or horizontal orientation
- 1.75″ (44 mm) Titanium diaphragm compression driver with complex geometry phase plug and neodymium magnetic structure for higher output, incredibly low distortion and extended frequency response
- 6″ mid-range driver with a 1.75″ (44 mm) voice coil and neodymium magnet for increased control and output with reduced distortion and weight
- Horn loaded, 12″ mid-bass driver with a 3″ (76 mm) inside/outside, epoxy baked, high temperature voice coil assembly and neodymium magnetic structure
- Three way active requirement – 900W from the EPAK2500/R providing 600W for the 12″ low mid, 200W for the 6″ midrange and 100W for the high frequency driver
- Proprietary side handle design for simlified handling and carrying
- High impact low friction feet, asymmetrically located on three sides allowing vertical or horizontal system set up, lock-in and easy cabinet movement
- Four internal corner braces tied to eight M10 suspension points. A total of 24 suspension points are available for custom installation applications

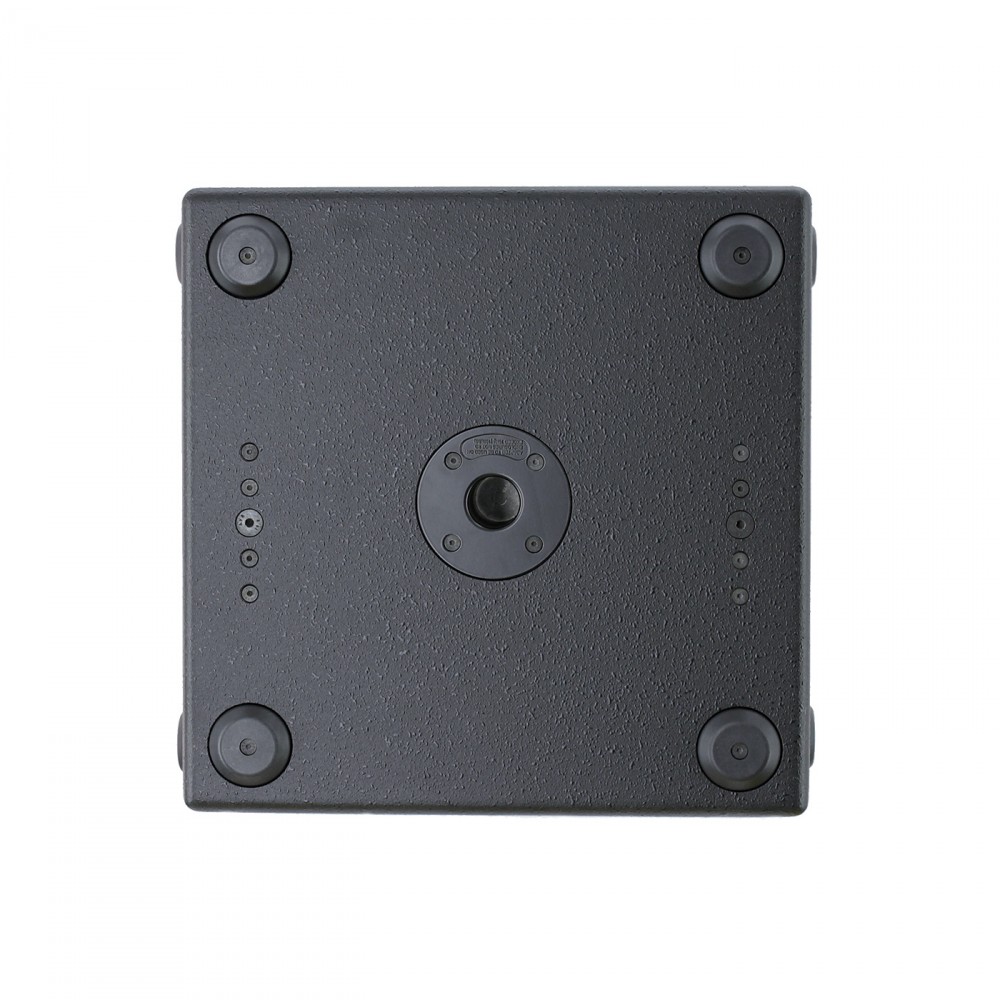

- Top hat for pole mounting applications
- Weather proofing option and special paint finishes available on request
Applications
Specifically designed as an extreme high output, compact mid-high enclosure as part of ES systems
- For live performance and music playback
- Small to large live concerts
- Small to medium nightclubs
- Houses of worship
- Portable PA
- Scalable into larger multi-tasking projects and systems
Product code
- KVV 987 002 – ES1.0
Additional Information
Max SPL Long-term | 131dB |
---|---|
Max SPL Peak | 134dB |
-3dB Response | 130Hz to 20kHz |
-10dB Response | 85Hz to 28kHz |
Impedance | Low 16Ω Mid 8Ω High 8Ω |
Crossover Point | 130Hz, 500Hz, 2.5kHz |
High Horn Coverage Horizontal / Vertical | 90° x 40° rotatable |
High Frequency Amplifier Requirement | 100W from EPAK 2500/R |
Throat Exit Diameter / Diaphragm Size | 1" / 1.75" |
Mid Horn Coverage Horizontal / Vertical | 90° x 40° rotatable |
Midrange Amplifier Requirement | 200W from EPAK 2500/R |
Acoustic Design | Horn Loaded |
Mid-bass Amplifier Requirement | 600W from EPAK 2500/R |
Woofer Size / Voice Coil Diameter / Design | 12" / 3" / Inside Outside |
Diaphragm Material | Epoxy Reinforced Cellulose |
Magnet Type | Neodymium |
Speaker Input | AP6 |
Cabinet Material | Baltic birch |
Handles | 2 |
Pole Mount | 35 mm |
Color | "Orange peeled" Matt Black or any RAL |
Height | 700 mm (27.55") |
Width | 450 mm (17.71") |
Depth | 450 mm (17.71") |
Weight | 34 kg (74.8lbs) |
