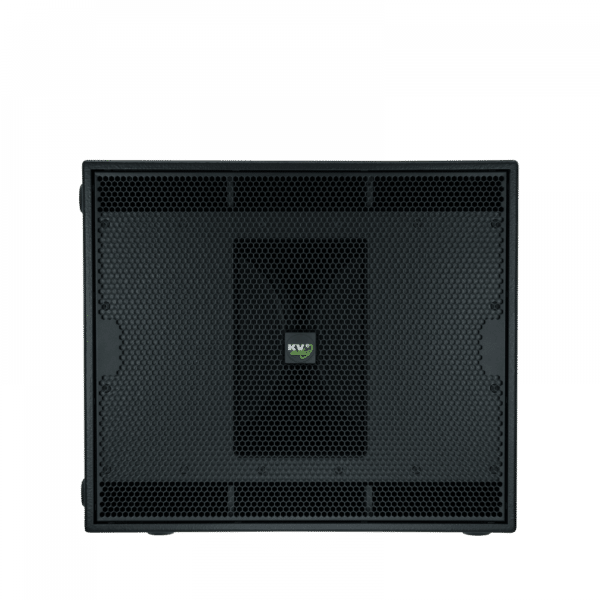

Product Description

Features

  • Professional, Baltic birch construction with highly resistant polymer coating
  • 137dB sustained output 140dB peak (when using 2 units of ES2.6)
  • High acoustic loading via twin asymmetrical chambers
  • Two 15″ low frequency drivers with 4″ (100 mm) inside/outside, epoxy baked, high temperature voice coil assembly
  • Four proprietary side handles for simlified handling and carrying
  • Heavy duty front grille to work with the innovative new ES series magnetic carts
  • High-impact, low friction feet are asymmetrically located on two sides allowing vertical or horizontal system set up, lock-in and easy cabinet movement
  • Six industrial grade internal corner braces with twelve M10 suspension points
  • M20 top hat for pole mounting applications
  • Weather proofing option and special paint finishes available on request

Applications

Specifically designed to accompany the ES1.0 as a true full range high output system for live performance and music

  • Theatres
  • Houses of worship
  • Portable PA
  • Scalable into larger systems
  • Can be integrated with other ES subwoofers

Product code

  • KVV 987 150 – ES2.6
Please follow and like us:
More Info

Additional Information

Max SPL Long-term

132dB (137dB – 2x ES2.6)

Max SPL Peak

135dB (140dB – 2x ES2.6)

-3dB Response

38Hz to 130Hz

-10dB Response

34Hz to 130Hz

Impedance

Crossover Point

130Hz

Acoustic Design

Twin Asymmetrical loading

Low Frequenzy Amplifier Requirement

800W / ES2.6 from EPAK2500/R

Number of Drivers

2

Woofer Size / Voice Coil Diameter / Design

15" / 4" / Inside Outside

Diaphragm Material

Epoxy Reinforced Cellulose

Magnet Type

Ferrite

Speaker Input

AP4

Speaker Output

AP4

Cabinet Material

Baltic birch

Handles

4

Pole Mount

M20

Color

"Orange peeled" Matt Black or any RAL

Height

600 mm (23.62")

Width

700 mm (27.55")

Depth

750 mm (29.52")

Weight

69 kg (151.8lbs)
