Product Description
Features
- Professional, Baltic birch construction with wear resistant polymer coating
- 122dB sustained output, 125dB peak with very high dynamic range
- Compact, asymmetrical cabinet design allows for use as front fill or in under balcony applications
- Wide dispersion 100° H x 100° V horn
- Revolutionary new passive delay line
- 1.75″ (44 mm) Nitride Titanium diaphragm compression driver with complex geometry phase plug for higher output, exceptionally low distortion, extended frequency response and neodymium magnetic motor structure
- 6″ Low Inductance Lightweight mid-range dedicated to high-quality vocal reproduction
- 2 x Low Inductance Lightweight low frequency woofers offer enhanced bass performance

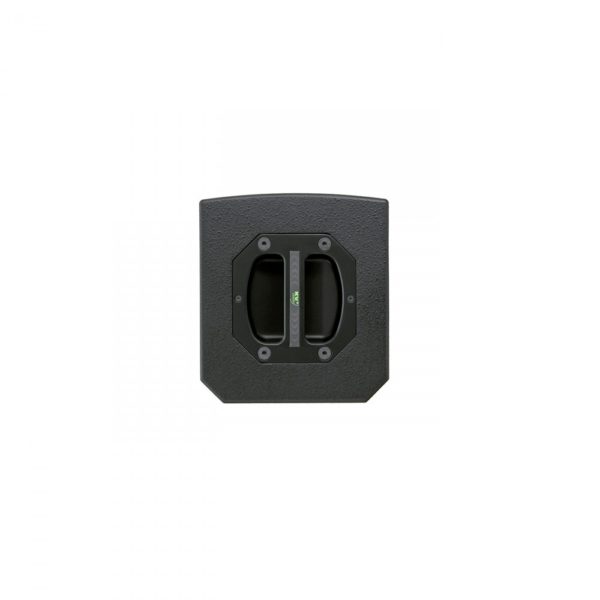

- Proprietary top handle design for simplified handling and carrying, integrates one M10 suspension point, OmnimountTM bracket point and four M6 points
- Additional side and bottom M10 points for flexible bracket, rigging and installation options
- “Top-hat” pole mount fitted at the base of the cabinet
Applications
Specifically designed as a passive loudspeaker for reproduction of recorded music in small areas
- Suitable in Fixed installations as full range stand-alone or with subwoofers
- Multi-purpose fixed installations
- Domestic and Professional studio monitoring
Product code
- KVV 987 224 – ESD36
Please follow and like us:
Additional Information
| Max SPL Long-term | 122dB |
|---|---|
| Max SPL Peak | 125dB |
| -3dB Response | 65Hz to 25kHz |
| Recommended Power | 350W |
| Sensitivity | 94dB |
| Impedance | 8Ω |
| Crossover Point | 600Hz, 2.5kHz |
| High Horn Coverage Horizontal / Vertical | 100° x 100° |
| Throat Exit Diameter / Diaphragm Size | 1" / 1.75" |
| Acoustic Design | Front Loaded, Bass Reflex |
| Woofer Size / Voice Coil Diameter / Design | 2 x 6" / 1.75" |
| Magnet Type | Neodymium |
| Diaphragm Material | Epoxy Reinforced Cellulose |
| Protection | RMS Limiter |

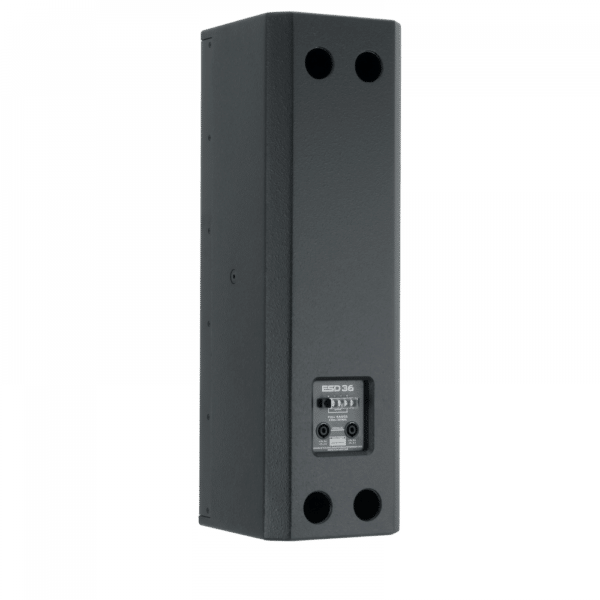

| Speaker Input | 2x Neutrik Speakon®, Terminal Block |
| Cabinet Material | Baltic birch |
| Handles | 1 |
| Pole Mount | 35 mm |
| Color | "Orange peeled" Matt Black or any RAL |
| Height | 730.5 mm (28.76") |
| Width | 220 mm (8.66") |
| Depth | 244 mm (9.60") |
| Weight | 17.6 kg (38.8lbs) |
