Product Description
Features

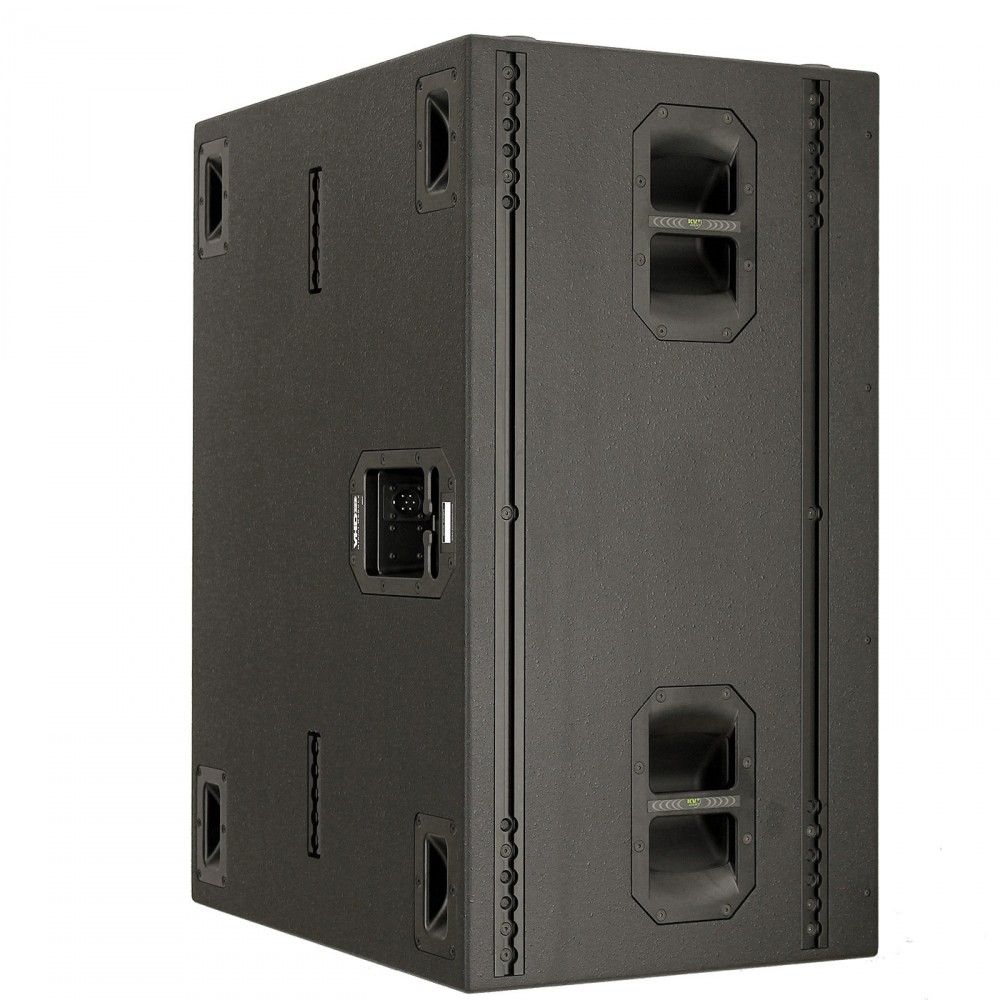

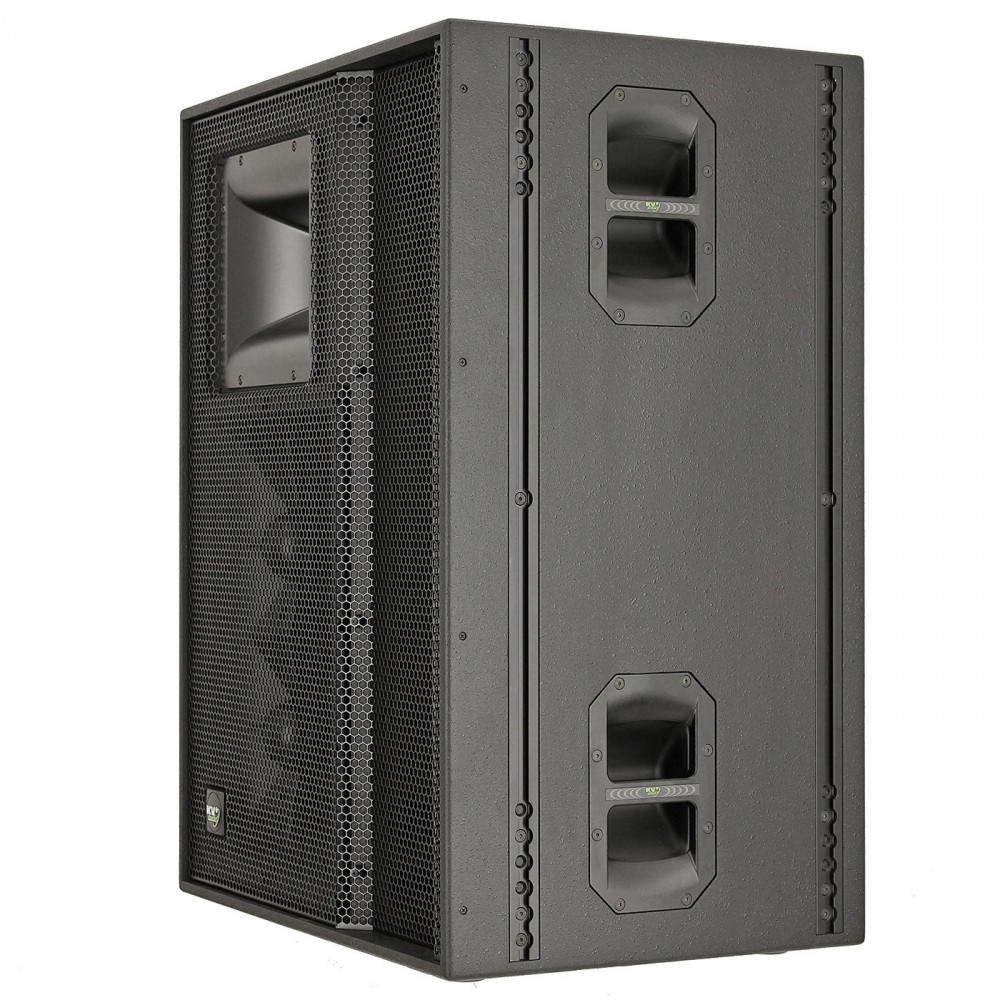

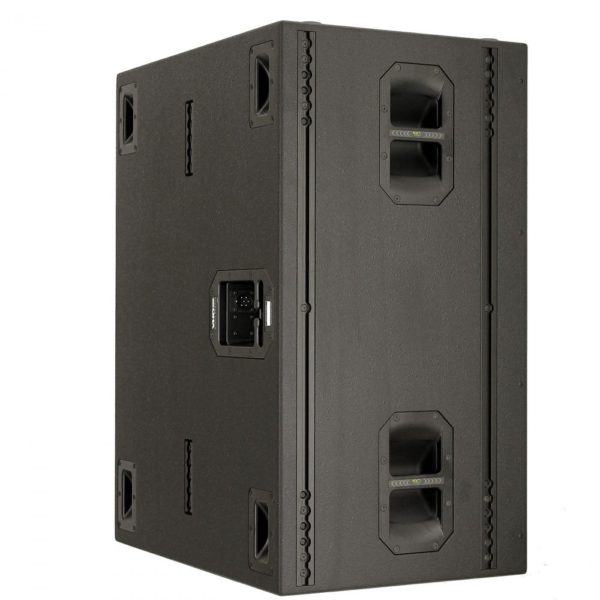

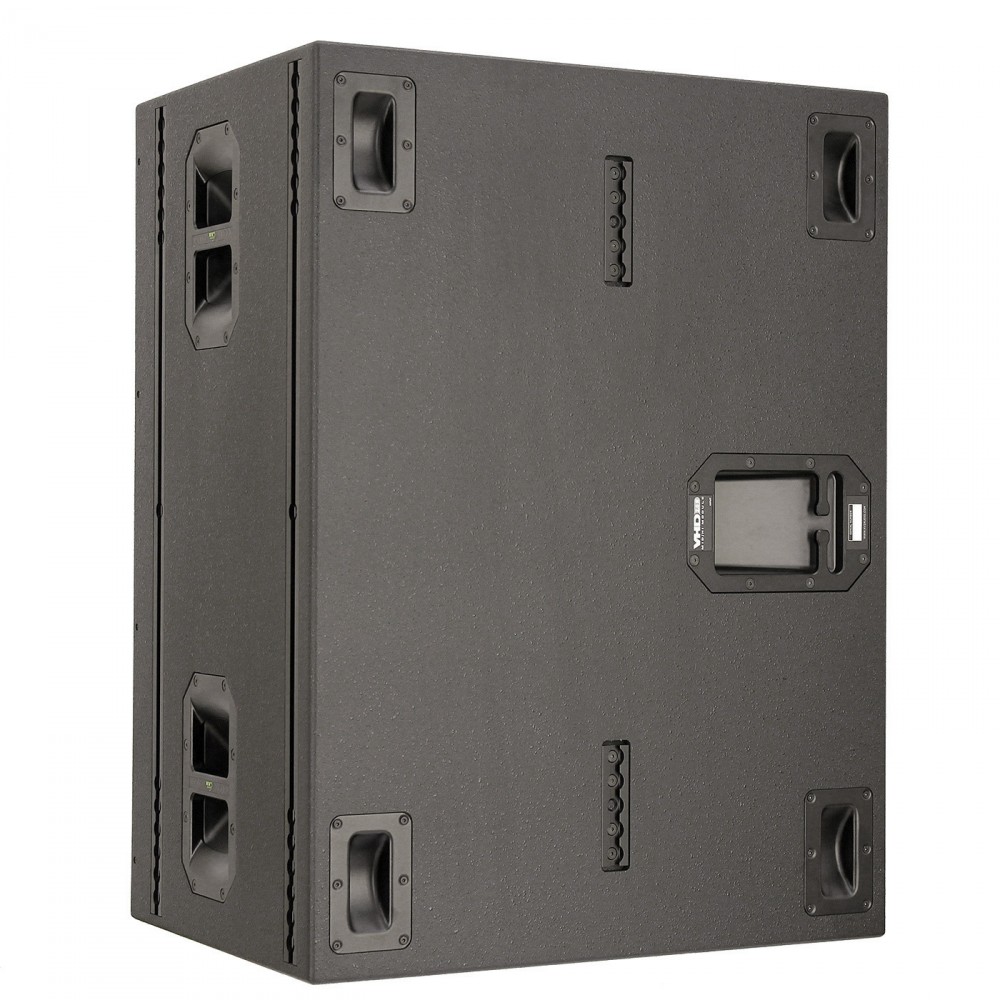

- Professional Baltic birch construction with wear-resistant polymer coating
- Four full length pieces of fly-track (two per side) and two five point, pull back pieces on the rear of the cabinet
- Very High Definition audio reproduction
- 139dB sustained output, 142dB peak
- Controlled wide dispersion 80° x 40° Mid / High horn
- New state of the art 3″ (76 mm) Nitride Titanium diaphragm compression driver with complex geometry phase plug and neodymium magnetic structure for higher output, exceptionally low distortion and extended frequency response
- Two 8″ Trans-Coil midrange drivers, with a 3″ (76 mm) voice coil and neodymium magnet for increased control and output with reduced distortion and weight
- Two horn loaded 12″ mid-bass drivers with 3″ (76 mm) inside/outside, epoxy baked, high temperature voice coil assemblies and neodymium magnetic structures
- Three way active requirement – 2000W from the VHD 2000 providing 1200W for the 12″ Low Mids, 600W for the 8″ Midranges and 200W for the High Frequency
- Proprietary side and top handle design, (6) for simplified handling and carrying
- High impact low friction feet, allowing lock-in to the VHD subwoofers and easy cabinet movement
- Front locking aluminium VHD wheel boards with wraparound hardwood bumpers
- Weather proofing option and special paint finishes available on request
Applications
Designed as an extreme high output and performance mid-hi unit as part of the VHD systems Very High Definition for live performance
- Medium to large concert venues
- Scalable from small to large systems
- Full range standalone use in public areas
- Hire and Production
- Large Theatres
Product code
- KVV 987 077 – VHD2.0 R (right)
- KVV 987 078 – VHD2.0 L (left)
Additional Information
Max SPL Long-term | 139dB (144dB two VHD 2.0’s) |
---|---|
Max SPL Peak | 142dB (147dB two VHD 2.0’s) |
-3dB Response | 100Hz to 22kHz |
-10dB Response | 85Hz to 30kHz |
Full Range mode -3dB Response | 60Hz to 22kHz |
Crossover Point | 100Hz, 450Hz, 2.2kHz |
High Horn Coverage Horizontal / Vertical | 80° x 40° / 80° x 10° (2x VHD 2.0's) |
High Frequency Amplifier Requirement | 200W (VHD2000 amp.) |
Throat Exit Diameter / Diaphragm Size | 1.4” / 3.0” |
Mid Horn Coverage Horizontal / Vertical | 80° x 40° / 80° x 10° (2x VHD 2.0's) |
Midrange Amplifier Requirement | 600W (VHD2000 amp.) |
Acoustic Design | Horn Loaded |
Mid-bass Amplifier Requirement | 1200W (VHD2000 amp.) |
Woofer Size / Voice Coil Diameter / Design | 2x 12" / 3" / Inside Outside |
Diaphragm Material | Epoxy Reinforced Cellulose |
Magnet Type | Neodymium |
Speaker Input | AP6 male |
Cabinet Material | Baltic birch |
Handles | 6 |
Color | "Orange peeled" Matt Black or any RAL |
Height | 933 mm (36.72") |
Width | 700 mm (27.55") |
Depth | 495 mm (19.48") |
Weight | 70 kg (154.0lbs) |
