Product Description

Features

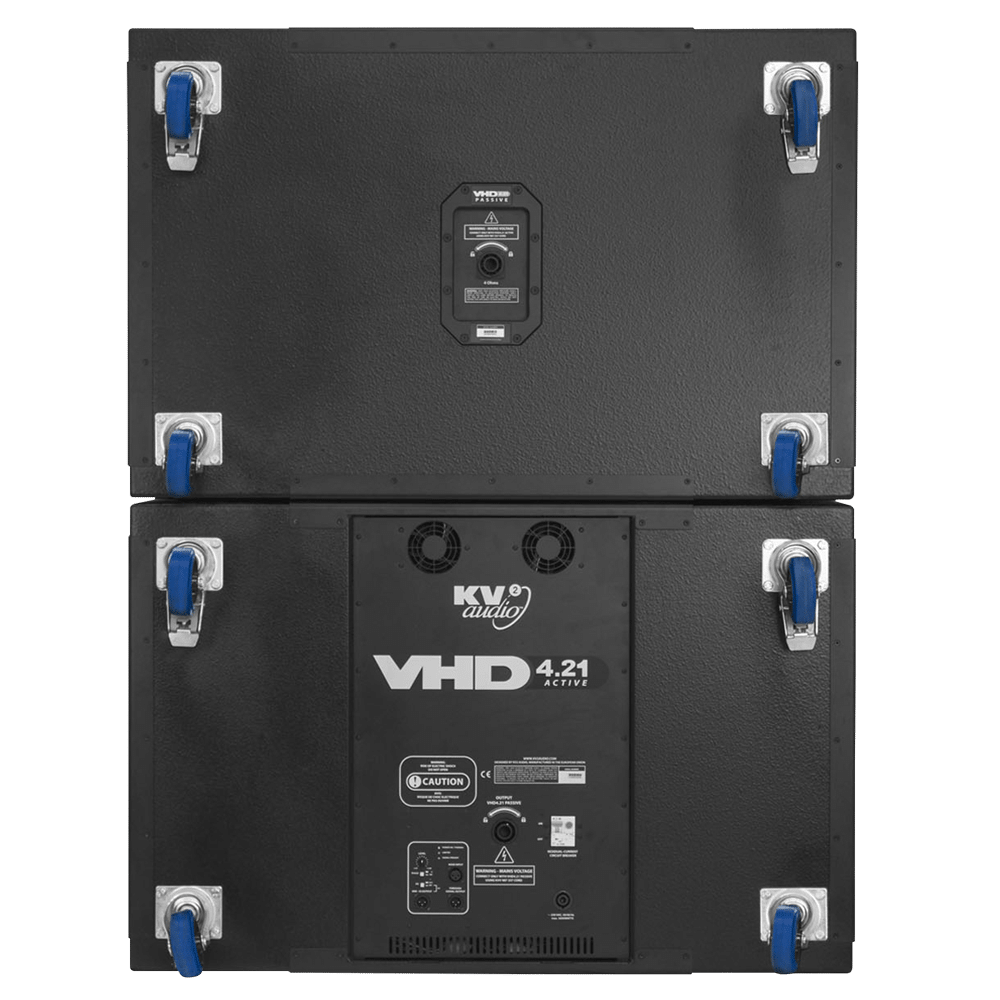

The VHD4.21 Active Subwoofer Module consists of two purpose designed  ‘Low Loss-Band Pass’ enclosures, one Active and one Passive, with each enclosure containing two specific custom designed large format 21″ woofers.

The Low Q design has been applied to attain the optimum Loudspeaker loading, enabling a high sensitivity of 109dB 1w/1m. The design of our unique and innovative new power management system enables the Active Power Amplifier to deliver peak output levels of 14kW, whilst operating at a modest constant consumption of 3.6 kW from a 16A circuit.

An impressive maximum 320V supplied (limited) peak to peak at 100A from the VHD4.21 Active Module represents a bullet- proof technology that has been fully developed and refined over 12 years of active operation in real life applications, providing maximum control over movement of the large mass of the speaker.

Applications
The Ultimate seismic Subwoofer to add to any KV2 Audio or third party manufacturers system.

Large scale live music and playback performance
Dance Clubs and Nightclubs where Music comes first
Hire and Production
Large Concert venues
Cinema
Fixed installation
Easily incorporated into multiple system projects with VHD, SL, ES and ESR

Product code
KVV 987 333 – VHD4.21 ACTIVE
KVV 987 336 – VHD4.21 PASSIVE

Please follow and like us:
More Info

Additional Information

Max SPL Long-term

147dB

Max SPL Peak

150dB

-3dB Response

34Hz – 180Hz

-10dB Response

28Hz – 240Hz

Crossover Point

70Hz

Acoustic Design

Bandpass with low port losses

Woofer Size / Voice Coil Diameter / Design

4x 21" / 5.3"

Diaphragm Material

Epoxy Reinforced Cellulose with Carbon Fiber and Double Surround

Magnet Type

Neodymium Advanced Ventilated

Type

Direct power switching amplifier

Rated Continuous Power

3500W

Short Term Power

14000W

Distortion

<0.05%

Input Sensitivity

1.55V RMS

Input Impedance

20 kΩ

Power Connector

Neutrik PowerCon® 32A

Operating Voltage

180V – 260V @ 50Hz, 60Hz

Recommended Amperage

16A

Cabinet Material

Baltic Birch

Handles

12

Color

Black or any RAL

Height

700mm (27.56")

Width

1080mm (42.52")

Depth

1200mm (47.24")

Weight (Active)

175kg (386lbs)

Weight (Passive)

155kg (342lbs)
